Architectural Model Conservation & Restoration
James Stirling, No 1 Poultry RIBA

The City of London one square mile model was commissioned by Lord Peter Palumbo and constructed by Presentation Units.

The model was produced in stages with the production starting in the middle of 1981 and was finally completed in 1982. Interestingly, the model was continually updated through its life until it was finally adapted for the James Stirling’s No 1 Poultry project in 1985.

Many objections to the Mansion House scheme were based on Mies's glass tower's height. It was thought that the tower would potentially block existing views across London and especially those to Sir Christopher Wrens, St Paul’s Cathedral.

The idea behind this City of London model (some say) came from a letter written by the architect Richard Rogers to Lord Peter Palumbo. This letter suggested that a model might be beneficial to alleviate people’s fears of the Mies tower’s height and impact on existing vistas.

Therefore it was decided to produce a 1:1250 scale model showing form and heights of every building in the City of London's square mile. The model was produced from acrylic sheet and to maintain continuality, it was sprayed to match the existing building colour of the larger Mies 1:96 scale model.

Historically there were very limited records of buildings heights across the square mile of the City of London. Unlike today there were no internet or satellite images available to help with either heights or building massing.

Beforehand it was normal practise for model makers to use black & white aerial photographs under high magnification to view and calculate architectural details. Next an architectural student was employed to fill in the large amounts of missing building data. To obtain this data, the student walked the City of London streets, equipped with a height range finder, camera and recorded existing building information.

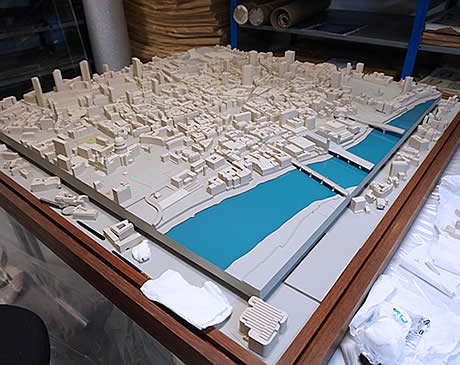

Restoration of City of London Model - Updated in 1985 for the James Stirling No 1 Poultry Exhibition at the Guildhall.

This information was then collated and added to a 1250 scale plan. Each 125 mm x 125 mm section of the model took a model maker approximately 40 hours to complete, more complicated areas for example; St Pauls cathedral took approximately one month.

For the next 7 years the Mies Van Der Rohe City of London model was the most accurate record of building heights in the City of London.

Both the City of London and the larger 1:96 scale Mies tower models had been designed with electrically operated mechanical bases.

Rather uniquely the 1250 scale City of London model stand could be repositioned, from the normal horizontal viewing position, to a 60 degree tilt. By the stand having this dual positioning, the model could be displayed in the horizontal plane for people to experience vistas across the City. Whilst the additional 60 degree tilt allowed visitors to get a birds eye view, gathering their bearings from various famous landmarks.

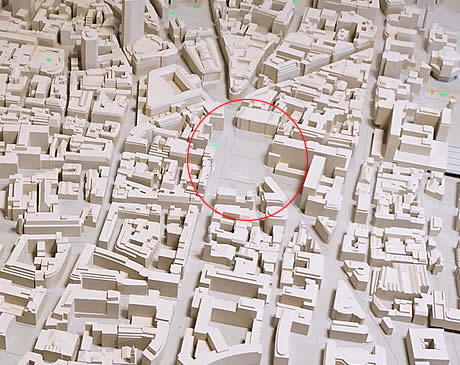

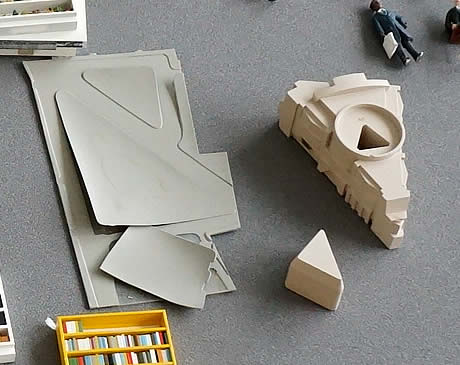

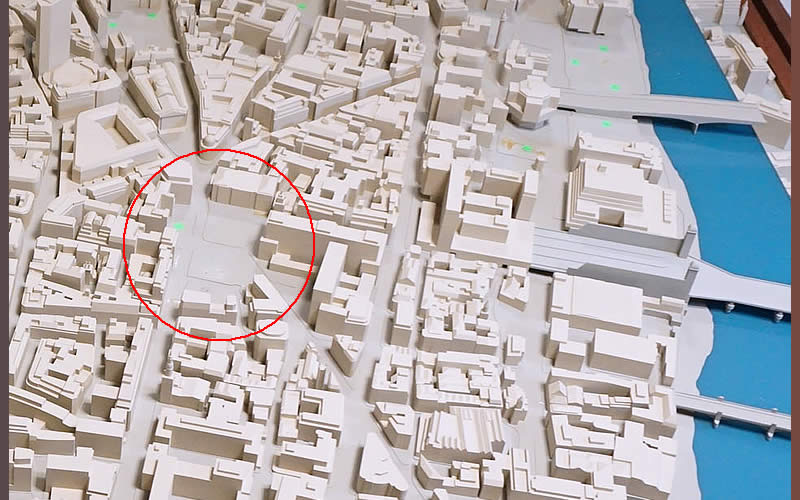

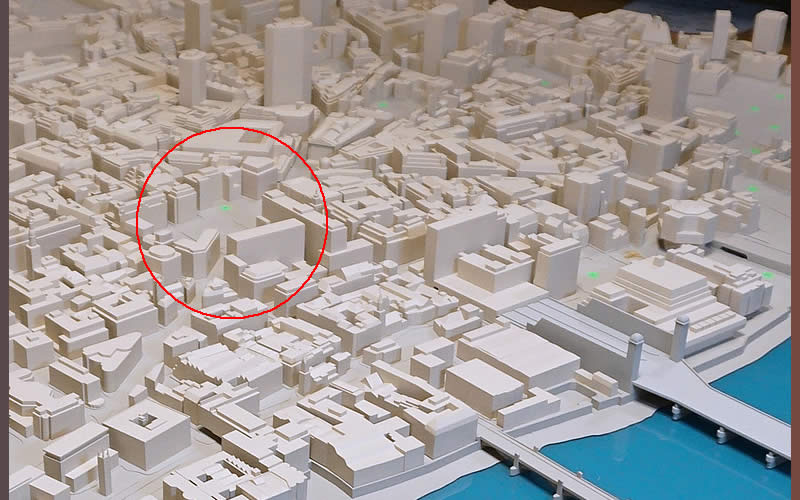

James Stirling, No 1 Poultry - 1250 Scale City of London Model Insert - Converted the Base from the Mies Scheme.

Unfortunately both model stands are no longer part of the Lord Palumbo archive. Nevertheless the RIBA will be showing the City of London model in its tilted position for the Mies van der Rohe and James Stirling: Circling the Square Exhibition.

The City of London model had originally been fitted with an acrylic clear cover and was of a more robust construction than the other two Mies models. Nevertheless it had still been affected by changes in temperature and humidity. These fluctuations resulted in the failure of the adhesives holding a large number of model buildings in place. In addition to this, the model was very dirty and suffered from the same white chalky residue seen on the other two Mies models.

The decision was taken by the RIBA to only replace the loose buildings due to the amount of man hours necessary to clean each of the hundreds of model buildings and roads. Therefore restoration only consisted of removing the old adhesive and the replacement of the loose buildings.
